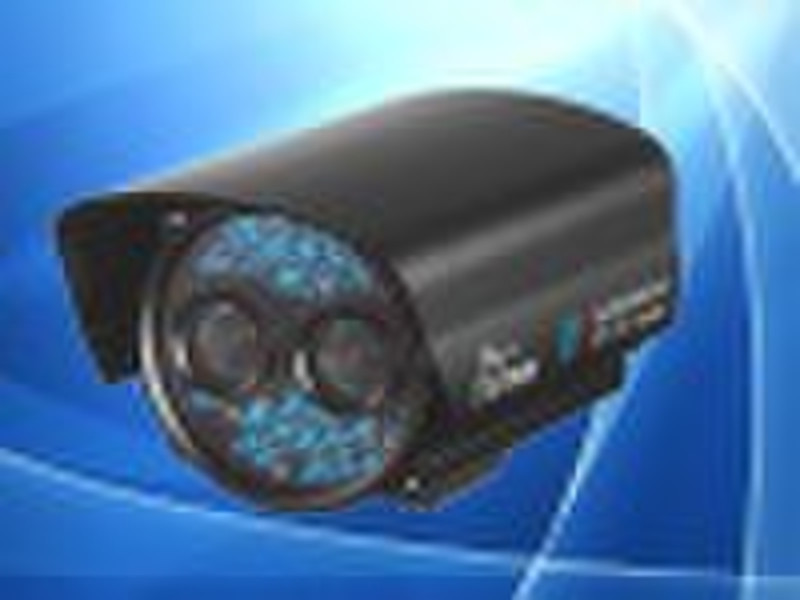

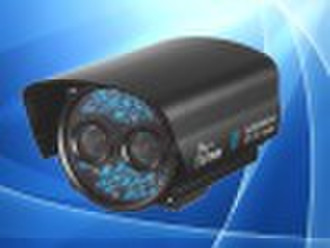

50M IR Range Waterproof video surveillance system
original price: 1,00 USD
Alex Chain
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | LINSETOM |
| Model Number | CS-8546B |
Description: 1/3" Sony CCD video surveillance IR Range 50M video surveillance 30pcs LED IR lights 480TVL/520TVL/600TVL Dual Lens 16mmSpecifications: CS-8546B420TVL 1/3" Sony Super HAD CCD F1.2, 0.1LuxCS-8547B480TVL 1/3" Sony Super HAD CCD F1.2, 0.03LuxCS-8547HB520TVL 1/3" Sony Super HAD CCD F1.2, 0.05LuxCS-8577SHB650TVL 1/3" Sony Super HAD CCD F1.2, 0.05LuxB/W len600TVL 1/3" Sony Super HAD CCD F1.2, 0.1Lux Picture Elements420TVL PAL: 500(H)*582(V) NTSC: 510(H)*492(V)>420TVL PAL: 752(H)*582(V) NTSC: 768(H)*492(V)Image Size< 480TVL 3.6mm*2.7mm> 480TVL 4.9mm*3.7mmScanning FrequencyPAL: 15.625KHz(H)50Hz(V) NTSC: 15.7343KHz(H)60Hz(V)Electronic Shutter1/50(1/60)-1/100,000(S)S/N Ratio>48dbSYNC. SystemInternal SYNC.Gamma Adjust0.45White BalanceAuto tracking white balanceLens12mm(std), other lens optionalIR Range50 MetersAngle of View25 degreeLED Longevity20000 HoursProtection RateIP66Video Output1.0Vp-p, 75ΩOperating VoltageDC12V±10%Operating Temperature-10°C 50°C
Delivery terms and packaging
Packaging Detail: cartonwhite packingneutral packing Delivery Detail: 10 days after the receipt of payment
Port: shenzhen
